Placa de baza SUPERMICRO X10SRA ATX Server Workstation LGA 2011-3 Intel C612

Name: Placa de baza SUPERMICRO X10SRA ATX Server Workstation LGA 2011-3 Intel C612
Brand: Biteks
SKU: B-X10SRA
Price: 577.99 RON
Availability: InStock

577^,99 RON (TVA inclus) 583^,99 RON

Costurile de livrare nu sunt incluse

Cumpara acum, plateste mai tarziu de la 14,01 RON / Luna Detalii aici

Cum te putem ajuta?

Suna-ne: +40741844865 (Luni - Vineri, 9-18:00 si Sambata 9-13:00)

Trimite-ne un mesaj

Descriere

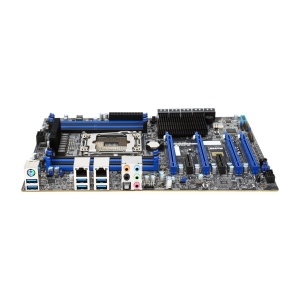

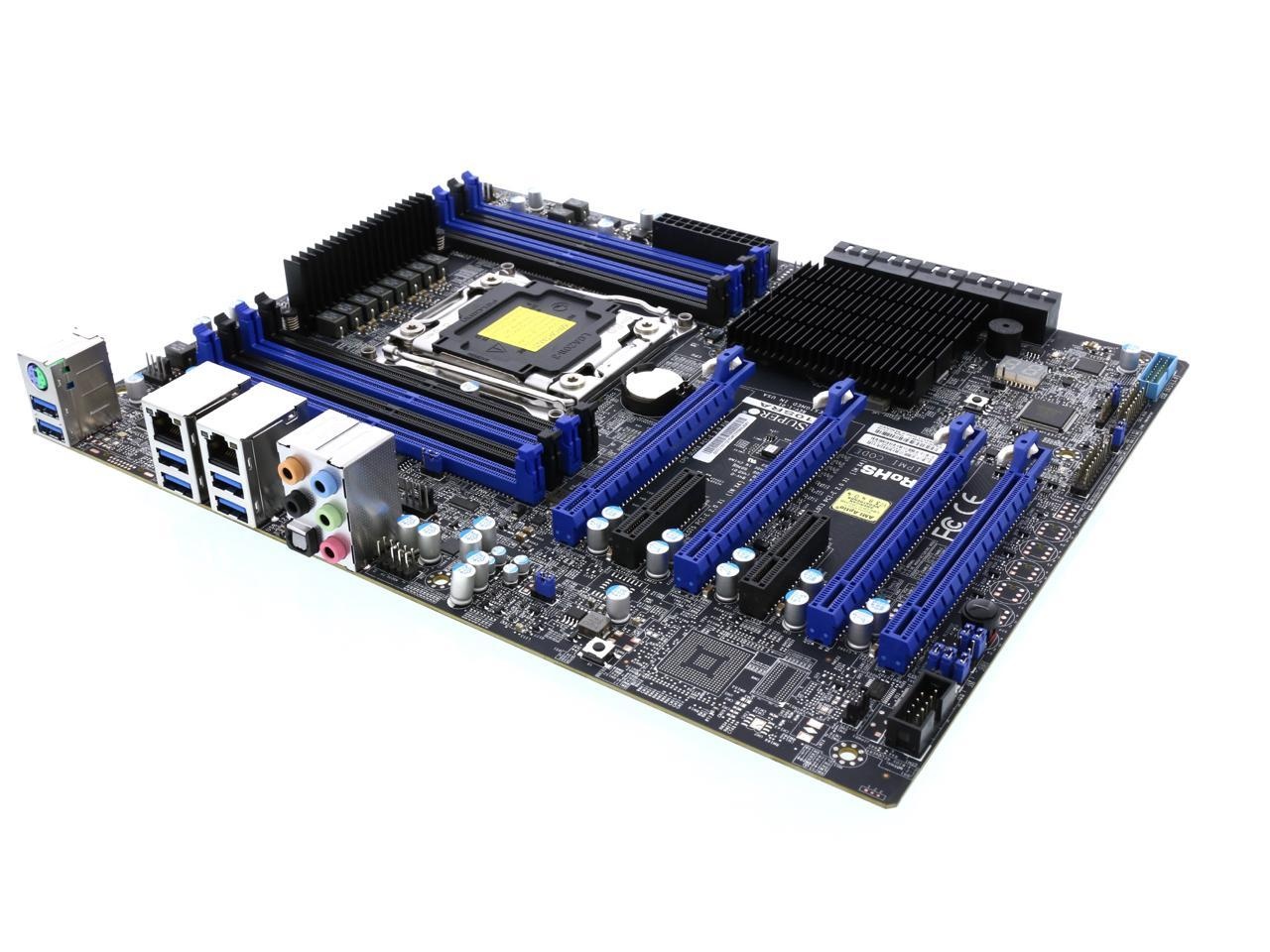

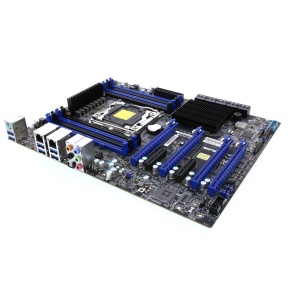

Placa de baza SUPERMICRO X10SRA ATX Server Workstation LGA 2011-3 Intel C612

Placa provine din un sistem workstation dezmembrat. Este insotit de shield (tablita I/o)



MBD-X10SRA	X10SRA

Physical Stats

Form Factor	ATX
Dimensions	12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU	Intel® Core i7 series, Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4 Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 160W TDP
Cores / Cache	Up to 22 cores † / Up to 55MB† cache
Note	† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory

Memory Capacity	Up to 256GB Registered ECC RDIMM; Up to 1TB 3DS ECC LRDIMM, DDR4-2400MHz Or 128GB Unbuffered ECC/non-ECC UDIMM, in 8 DIMM slots Up to 512GB ECC LRDIMM ; UDIMM will be only available for Core i7 processors. ; 2400MHz is supported by E5 V4 processors with 2DPC of LRDIMM or 1DPC of RDIMM.; 8x 288-pin DDR4 DIMM slots
Memory Type	2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset	Intel® C612
SATA	Intel® C612 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Dual LAN with Intel® i210 Gigabit Ethernet Controller
Audio	ALC 1150 HD Audio

Input / Output

SATA	10 SATA3 (6Gbps) port
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	8 USB 3.2 Gen1 ports (6 rear + 2 via headers); 4 USB3.0 ports could be upgraded to 4 USB3.1(10 Gb/s) ports (2 rear, 2 by header)(BOM option)
Serial Port / Header	1 COM Port (1 header)
TPM	TPM Header

Expansion Slots

PCI-E	4 PCI-E 3.0 x16 2 PCI-E 2.0 x1 (in x4 slot), 4 PCI-E Gen3x16 slots are running at 16/16/NA/8 or 16/8/8/8 PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed) PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed)

System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup

Management

Software	SuperDoctor® 5, SuperDoctor® III, Watchdog
Power Configurations	ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery

PC Health Monitoring

Voltage	+12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
Temperature	Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED	CPU / System Overheat LED, Suspend static indicator LED
Other Features	Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS
